The Dynamic Model of Plane Mechanism with Variable Ratio.

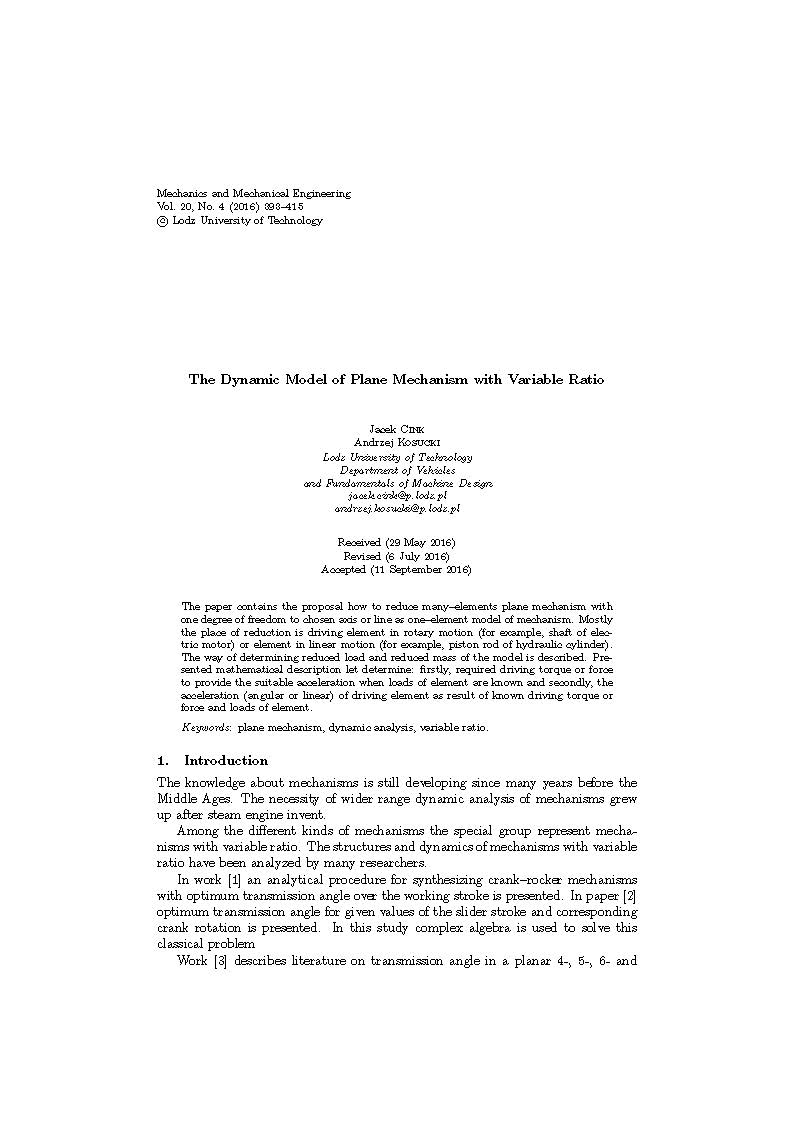

Miniatura

Data

2016

Tytuł czasopisma

ISSN czasopisma

Tytuł tomu

Wydawca

Lodz University of Technology. Faculty of Mechanical Engineering. Department Division of Dynamics.
Wydawnictwo Politechniki Łódzkiej. Wydział Mechaniczny. Katedra Dynamiki Maszyn.

Abstrakt

The paper contains the proposal how to reduce many–elements plane mechanism with one degree of freedom to chosen axis or line as one–element model of mechanism. Mostly the place of reduction is driving element in rotary motion (for example, shaft of electric motor) or element in linear motion (for example, piston rod of hydraulic cylinder). The way of determining reduced load and reduced mass of the model is described. Presented mathematical description let determine: firstly, required driving torque or force to provide the suitable acceleration when loads of element are known and secondly, the acceleration (angular or linear) of driving element as result of known driving torque or force and loads of element.

Opis

Słowa kluczowe

plane mechanism, dynamic analysis, variable ratio, mechanizm samolotu, analiza dynamiczna, zmienny współczynnik

Cytowanie

Mechanics and Mechanical Engineering Vol. 20, No. 4, 2016, str. 393–415
