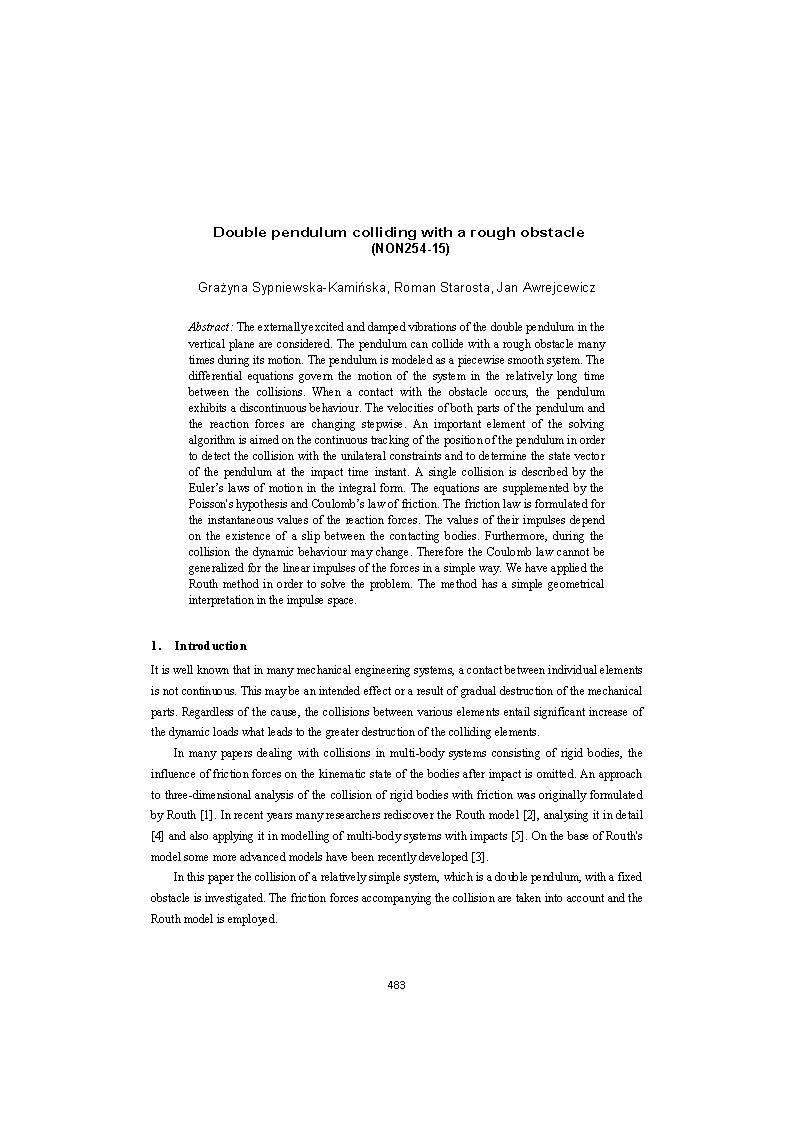

Double pendulum colliding with a rough obstacle.




Tytuł czasopisma

ISSN czasopisma

Tytuł tomu


Politechnika Łódzka. Wydział Mechaniczny. Katedra Automatyki, Biomechaniki i Mechatroniki.


The externally excited and damped vibrations of the double pendulum in the vertical plane are considered. The pendulum can collide with a rough obstacle many times during its motion. The pendulum is modeled as a piecewise smooth system. The differential equations govern the motion of the system in the relatively long time between the collisions. When a contact with the obstacle occurs, the pendulum exhibits a discontinuous behaviour. The velocities of both parts of the pendulum and the reaction forces are changing stepwise. An important element of the solving algorithm is aimed on the continuous tracking of the position of the pendulum in order to detect the collision with the unilateral constraints and to determine the state vector of the pendulum at the impact time instant. A single collision is described by the Euler’s laws of motion in the integral form. The equations are supplemented by the Poisson's hypothesis and Coulomb’s law of friction. The friction law is formulated for the instantaneous values of the reaction forces. The values of their impulses depend on the existence of a slip between the contacting bodies. Furthermore, during the collision the dynamic behaviour may change. Therefore the Coulomb law cannot be generalized for the linear impulses of the forces in a simple way. We have applied the Routh method in order to solve the problem. The method has a simple geometrical interpretation in the impulse space.


Słowa kluczowe

systems theory - conference, dynamical systems - conference, mechatronics - conference, teoria systemów, systemy dynamiczne, mechatronika, podwójne wahadlo


Dynamical systems : mechatronics and life sciences ; s. 483-492
